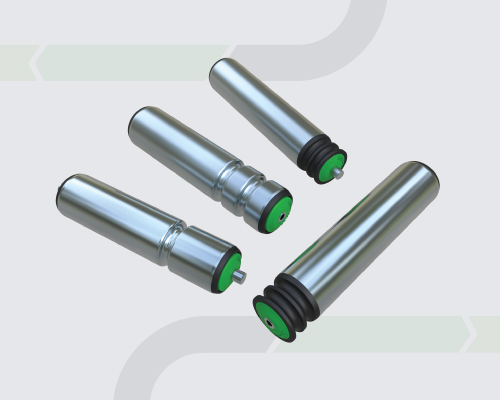

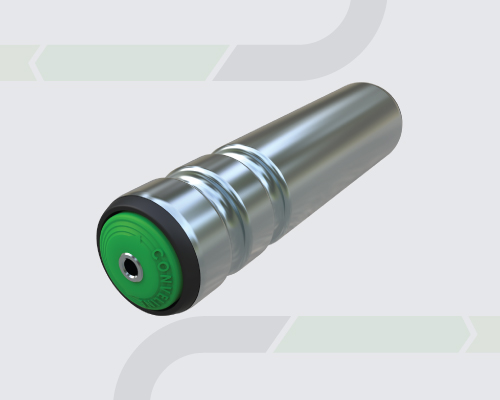

MDR Conveyor
Motorized Drive Roller (MDR) conveyor sections feature a single motorized roller that powers a limited number of free-turning (gravity) rollers, creating an independent and controllable zone. This innovative design enhances efficiency, reduces energy consumption, and streamlines material handling processes.
Benefits:
- Fast Return on Investment
- No Maintenance
- Low energy consumption
- Total cost of ownership
- Less time of installation
- Roller Motor extension cable
Technical Specification:
Pipe Dia | 50x1.5 mm |
---|---|
Pipe Material | Mild Steel, Stainless Steel |
Motor Shaft | Stainless Steel, 11mm Hex, Thread M12x1 |
Nominal Voltage | 20-25 VDC |
No Load Current | 0.5 A |
Max. Continues Current | 2 A |
Max. Start Current | 5 A |
Mechanical Performance | 50 W |
Noise Level | 55 DB* |
Min. Roller Length | 270 mm (Depending on Application) |
Max. No. of Start/Stop per Min | 30 |
Life time under nominal condition | 20000 |
Protection Class | IP54 |
Ambient Temp. in Operation | 0-40℃ |
Air Humidity | 5-85% |
Features, Performance data and Mechanical performance apply to an ambient temp. of 20℃ | |
*Value can change according to installation Conditions. |
Features and Options:
- Various Drive Options
- Tapered Rollers also available
- Optional Polyurethane sleeving
- Safe low voltage
- Wide range of speeds
Load Capacity:
Length up to 1000mm without drive pulley (Straight type) | 1100N |
---|---|
Length from 1100mm to 1300mm without drive pulley (Straight type) | 600N |
Max. Load capacity per roller with drive. Pulley (poly V, O ring, Timing belt, etc.), length up to 1300mm | 350N |
Why Choose Conveline

manufacturing Area

Manufacturing Capacity Yearly

Manufactured in India

manufacturer of Conveyor Rollers
Roller Range :
Usage of MDR
Usage of MDR
MDR are a popular choice for many industrial conveyor systems. They are widely used in assembly lines, distribution centers, warehouses, and other material handling applications. The rollers are powered by a 24V DC motor, which provides a safe and efficient way to transport goods from one point to another.
Here are some of the common usages of MDR:
- Conveyor systems: MDR are commonly used in conveyor systems to transport goods. They can be used in straight or curved sections of the conveyor and can handle a variety of loads, including boxes, bags, and pallets.
- Material handling: These rollers can be used in various material handling applications, such as sorting, loading, and unloading of goods.
- Packaging: MDR are also widely used in packaging applications, such as in packaging lines where they are used to transport packaged goods.
- Automotive industry: These rollers are also used in the automotive industry, where they are used in assembly lines to transport vehicle parts.
Frequently Asked Questions
Frequently Asked Questions
1. What are the benefits of using MDR in conveyor systems?
- They are energy efficient
- They are safe to use
- They are easy to install
- They are low maintenance
2. Can MDR handle heavy loads?
Yes, MDR can handle heavy loads, depending on the size and design of the roller.
3. Are MDR expensive?
The cost of MDR depends on the size, design, and application. However, they are generally affordable and offer good value for money.
4. Can MDR be customized?
Yes, MDR can be customized to meet specific requirements, such as size, load capacity, and speed.
